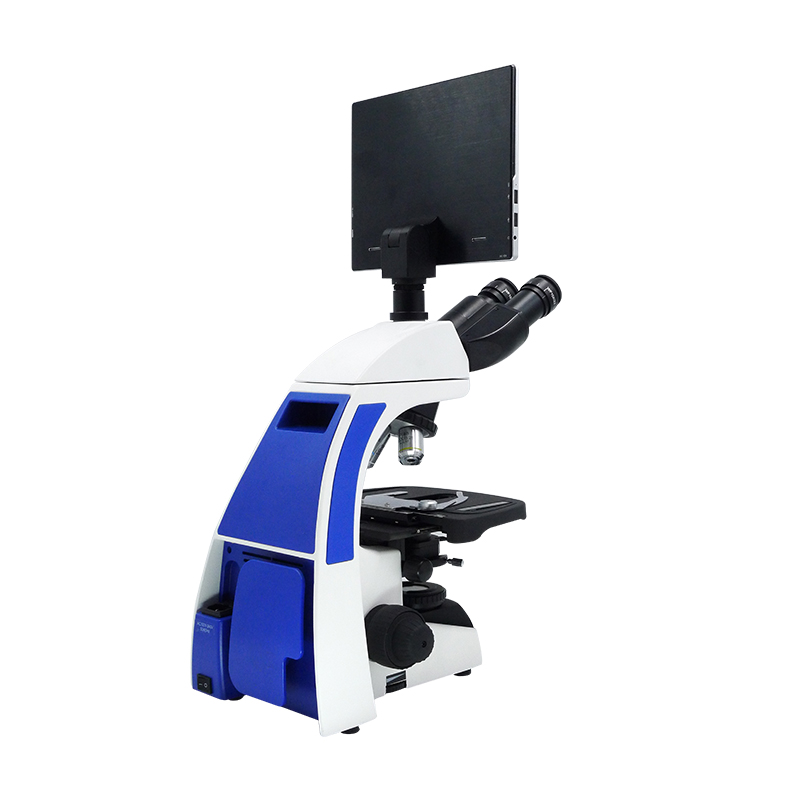

Optical system
|
Infinite optical system
|
|
Viewing head
|
Trinocular head, inclined at 30º, interpupillary distance 48 mm-75 mm
|
|
Eyepiece
|
wide field eyepiece WF10X/22 mm, with ±5 diopter control
|
|
Objectives
|
Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil)
|
|
Stage
|
Coaxial mechanical stage: 216 x150 mm
Travel stage: 75x55 mm
|
|
Condenser
|
Kohler N.A. 1.25 condenser (with socket for phase contrast& dark field sliders)
|
|
Focusing
|
Coarse and fine focusing adjustment with limited and tension adjustment.
Coarse adjustment range 37.7mm, fine adjustment precision:0.001 mm
|
|
Nosepiece
|
Backward quadruple nosepiece
|
|
Illumination
|
Main supply 100 V ~ 240 V, 3W kohler LED lamp with intensity control (fixed center)
|
|

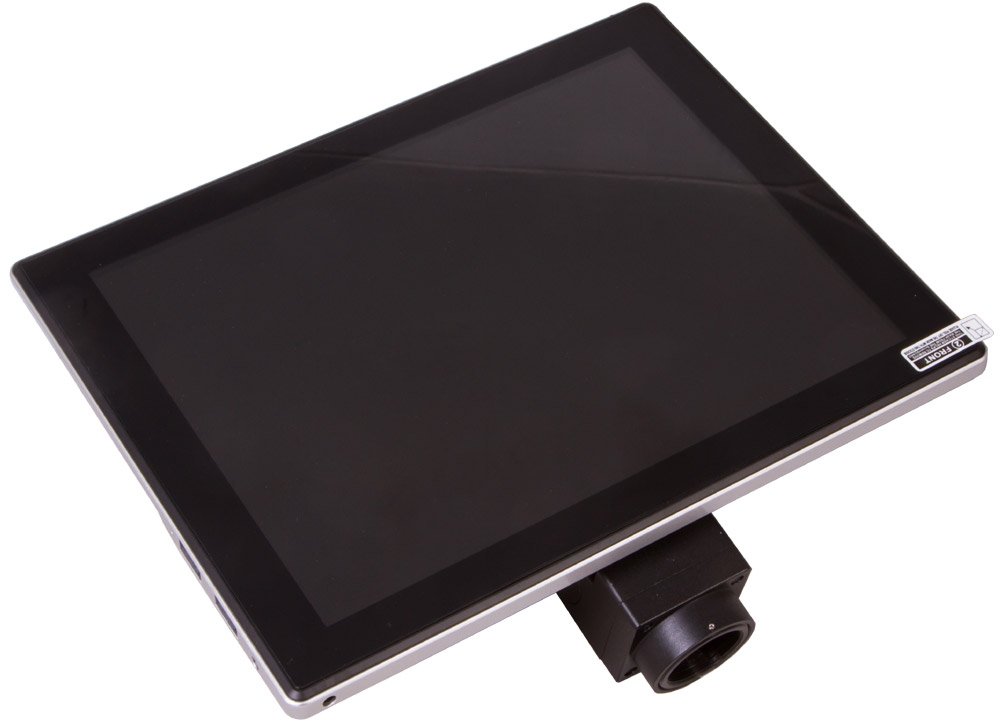

LCD Screen
|
9.7 inch TFT touch screen
|
|
Output
|
USB 2.0, HDMI
|
|
Operating system
|
Android 5.1
|
|
Software
|
YX camera
|
|
Valid Pixel
|
5.0 Mega pixel
|
|
Dimension
|
300×320×160 mm
|
|
Net weight
|
8 kg
|
|
Gross weight
|
10 kg
|
|
Power supply
|
85 V ~ 265 V universal power supply
|
