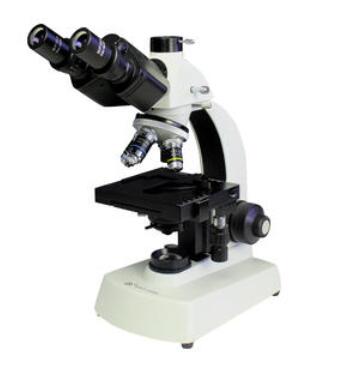

Viewing Head
|
Sliding Binocular Head，Inclined at 45º ，360ºRotatable
|
●
|
|
|
|
|
Eyepiece
|
Wide Field Eyepiece WF10X/18mm
|
●
|
|
|
Wide Field Eyepiece WF20X
|
○
|
|
|
Objective
|
Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
|
●
|
|
|
|
|
Nosepiece
|
Quadruple Nosepiece
|
●
|
|
|
Condenser
|
Abbe Condenser NA1.25 with Diaphragm，Filter
|
●
|
|
|
|
|
Focusing System
|
Coaxial Coarse and Fine Adjustment, Moving Range 30mm
|
●
|
|
|
|
|
Stage
|
Double Layer Mechanical Stage 140x120mm , Moving Range70mmx40mm
|
●
|
|
|
|
|
Illumination
|
6V/20W Halogm Lamp，Brightness Adjustment
|
●
|
|
|
LED Illumination，Brightness Adjustment
|
○
|
|
|
Product single size
|
42x55x39cm
|
●
|
|
